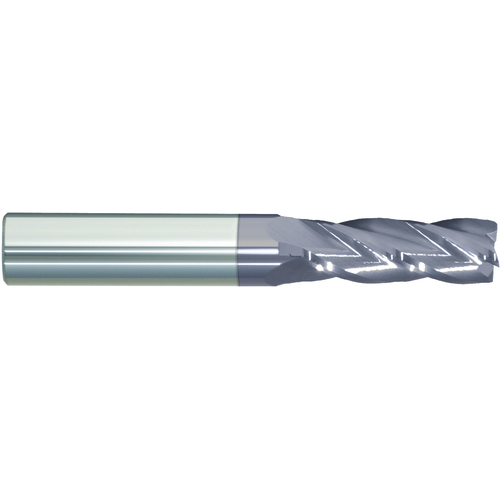

3 mm Dia. × 3 mm Shank × 9 mm DOC × 39 mm OAL Carbide 4 Flute 30° Helix End Mill Series/List #5961T
| Cutting Diameter (DC) | 3 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 9 mm |
| Depth of Cut Maximum (APMX) | 9 mm | Tool Type | Single End |
| Overall Length (OAL) | 39 mm | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.1181″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | 5961T |
Product Features
| Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
3.12500
Package Width
.37500
Package Height
.37500
Package Weight
0.015
